CIM med Mounting Solutions

About

Cable-Integrated Mounting

CIM med has engineered a wide range of ergonomic mounts, arms, and carts to support your patient monitors, EMR, and computer hardware. Their cable-integrated design has been shown by independent clinical trials to be the most effective for microbial control in hygiene-sensitive environments. Take a sure step toward protecting yourself and your patients against healthcare-associated infections. We will work with you to find the perfect clinical mounting solution to fit your needs.

Videos

Products

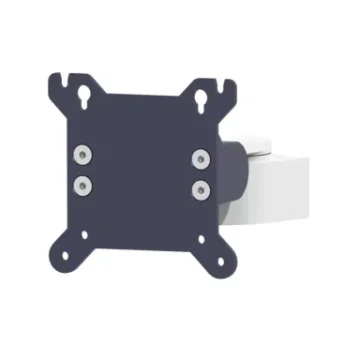

Flush Mount

Monitor adaptation: VESA 75 / 100
Material: aluminium, PA6.6
Surface: anodized, powder-coated RAL 9016
Plastic colors: RAL 5013 cobalt blue or RAL 7024 graphite grey
Max Weight: 18 kg (6-fold safety)

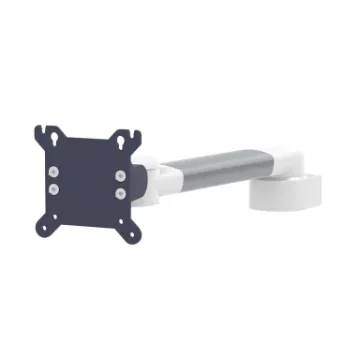

Pivot Arm

Monitor adaptation: VESA 75 / 100
Arm length: 240 mm or 300 mm
Material: aluminium, PA6.6
Surface: anodized, powder-coated RAL 9016
Plastic colors: RAL 5013 cobalt blue or RAL 7024 graphite grey
Max Weight: 18 kg (6-fold safety)

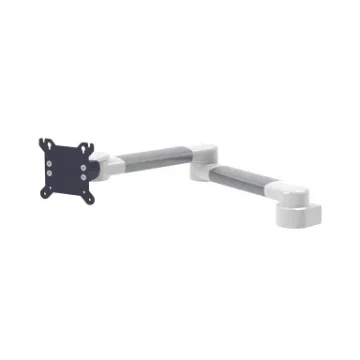

Articulating Arm

Monitor adaptation: VESA 75 / 100
Arm length: 240 x 240 mm or 300 x 300 mm
Material: aluminium, PA6.6
Surface: anodized, powder-coated RAL 9016
Plastic colors: RAL 5013 cobalt blue or RAL 7024 graphite grey
Max Weight: 300 x 300 mm: 12.5 kg; 240 x 240 mm: 15 kg (6-fold safety)

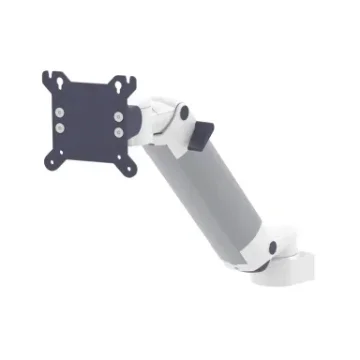

Height Adjustable Arm

Monitor adaptation: VESA 75 / 100
Height adjustment: slow-flowing gas spring, parallel linkage for a constant viewing angle
Material: aluminium, PA6.6
Surface: anodized, powder-coated RAL 9016
Plastic colors: RAL 5013 cobalt blue or RAL 7024 graphite grey
Weight capacity, gas springs: 800 N (3 — 8 kg); 1300 N (9 — 14 kg); 1750 N (13 — 18 kg); 2200 N (16 — 22 kg) (6-fold safety)

Height Adjustable Articulating Arm

Monitor adaptation: VESA 75 / 100
Height adjustment: slow-flowing gas spring, parallel linkage for a constant viewing angle
Material: aluminium, PA6.6
Surface: anodized, powder-coated RAL 9016
Plastic colors: RAL 5013 cobalt blue or RAL 7024 graphite grey
Weight capacity, gas springs: 800 N (3 — 8 kg); 1300 N (9 — 14 kg); 1750 N (13.5 — 18 kg); 2200 N (16 — 22 kg) (6-fold safety)

Counter Top Mount

Monitor adaptation: VESA 75 / 100
Height: 220 mm, 280 mm or 340 mm
Material: aluminium, PA6.6
Surface: anodized, powder-coated RAL 9016
Plastic colors: RAL 5013 cobalt blue or RAL 7024 graphite grey
Max Weight: 18 kg (6-fold safety)

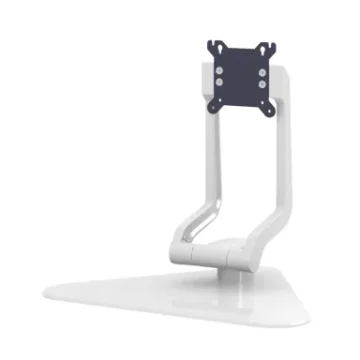

Counter Top Heavy Mount

Monitor adaptation: VESA 75 / 100
Material: aluminium, PA6.6
Surface: anodized, powder-coated RAL 9016
Plastic colors: RAL 5013 cobalt blue or RAL 7024 graphite grey
Max Weight: 30 kg (6-fold safety)

Light Duty Cart

Monitor adaptation: VESA 75 / 100
Basket
Handle
5-star base
Double wheel castors, Ø 100 mm, 2 lockable
Column to accept components and accessories on opposite sides
Total height: 1280 mm
Max Weight: 7 (without counter weight) — 14 kg (with counter weight)
